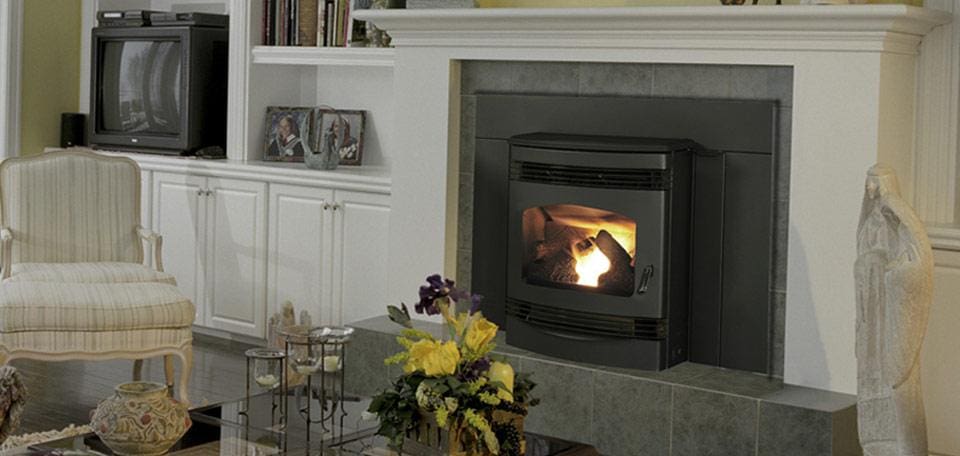

Quadra-Fire Santa Fe Pellet Insert
The Santa Fe is a sleek, contemporary and eco-friendly heating option. But don’t let its size fool you—this compact unit packs some heating punch. Expect clean, durable and long-lasting performance from this advanced insert.
- 30,600 BTUs — heats 700 to 1,800 square feet, based on climate and home efficiency
- EPA certified, with low emission levels of 1.1 grams per hour
- 45lb hopper capacity
- Patented feed system for jam-free operation
- Easy-clean firepot
Sante Fe Insert
| Width: | 21-1/2" |
| Height: | 25-3/8" |
| Front Width Minimum Firebox Opening: | 29-1/8" |
| Height Minimum Firebox Opening: | 23-1/4" |
| Depth Minimum Firebox Opening: | 13" |
| Back Width Minimum Firebox Opening: | 23-7/8" |
| Hearth Front Width: | 29-1/8" |
| Extension Onto Hearth: | 8-5/8" |
| Fuel Type: | Pellet |
| BTU/hr Input: | 9,400 - 30,600 |
| Heating Capacity: | 700 - 1,900 sq ft |
| Hopper Size: | 45 lbs |
| Viewing Area: | 201 sq in |
| Efficiency: | LHV 70%, HHV 66% |
| Emissions: | 1.1 grams/hour |
Additional information
| Brand | Quadra-Fire |
|---|---|
| Fuel Type | Pellet |
| Product Type | Insert |
